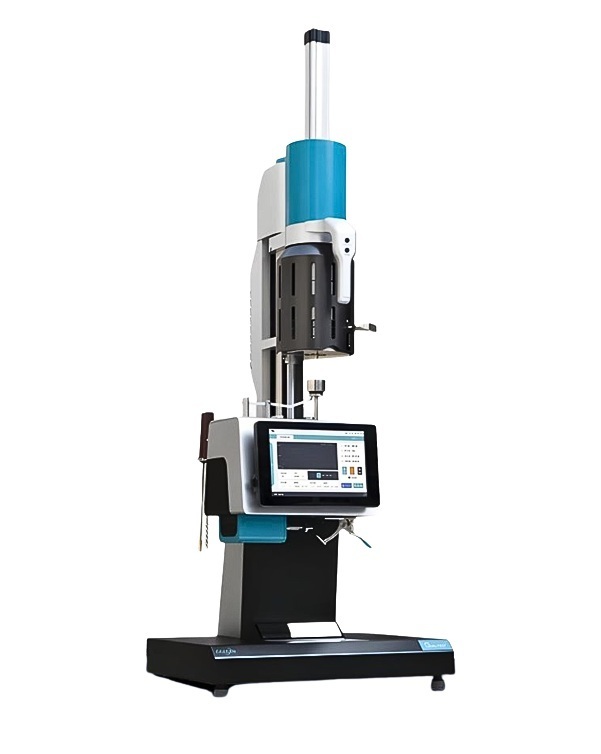

Automatic Melt Flow Indexer

Key Features

• Performs all three melt-flow test methods — MFI, MFR and MVR — to ASTM D1238 and TS EN ISO 1133, with the full standard load range of the AL MFI line from 0.325kg up to 21.6kg
• Dual-zone adaptive PID heating with independent temperature control in both compartments, 120–450°C range at ±0.1°C accuracy
• Titanium-coated tungsten carbide orifice and melting channel (precision orifice: 2.095 ± 0.005mm diameter, 8mm ± 0.025mm length) for long service life and repeatable results
• Automated, motor-driven cutter with 0.01-second cutting accuracy and adjustable timing, plus a 5-micron distance sensor and automatic weight-loading module
• Automatic weight loader
• Touch-screen operation with automated MFI/MVR calculation, statistical result evaluation, and USB data export through Alarge's own reporting software
• Modular design — convertible with the AL-MFI-A and AL-MFI-AB configurations in the same product line
